Epson 252 and 252XL ink cartridges use pigment-based ink. Both the standard black and all three color cartridges (Cyan, Magenta, Yellow) feature Epson’s DURABrite Ultra all-pigment formula, ensuring professional-grade durability on plain paper.
Epson 252 Cartridge Specs & Printer Compatibility
| Attribute | Standard (Epson 252) | High-Yield (Epson 252XL) | Extra High-Yield (Epson 254XL) |
|---|---|---|---|
| Ink Formulation | All Pigment (Black & Colors) |
All Pigment (Black & Colors) |
All Pigment (Black Only) |
| Page Yield | ~350 pages (Black) ~300 pages (Color) |
~1,100 pages (Black & Colors) |
~2,200 pages (Black Only) |
| Compatible Printers |
WorkForce A4 Series: WF-3620, WF-3640
WorkForce A3+ Wide-Format Series: WF-7110, WF-7210, WF-7610, WF-7620, WF-7710, WF-7720 |
||
Why Epson 252 Uses Pigment Ink (and Why It Matters)
Epson 252/252XL cartridges are formulated exclusively with all-pigment ink (DURABrite Ultra) to deliver smudge-proof, laser-like quality for business documents.
| Key Differences | Pigment Ink (Epson 252 Original) | Dye Ink (Alternative Third-Party) |
|---|---|---|
| Water & Smudge Resistance | 100% Waterproof & Highlighter-Proof |
Easily smears when wet |
| Durability & Lifespan | Archival grade (50–100+ years) |
Fades in 1–3 years |
| Finish on Glossy Paper | Matte / slight bronzing effect |
High-gloss, vibrant sheen |
| Plain Paper Text | Razor-sharp edges, no bleed-through |
Can feather slightly on thin paper |
Warning: Never Mix Inks!
Do not add dye ink directly into an Epson 252 system without purging the printhead. Mixing pigment and dye inks causes chemical clumping, leading to permanent nozzle clogs.
For more details on ink types across different models, check our guide on which Epson inks are pigment-based.
Epson 252 Cartridges Chip Mechanism & OEM Refill Limitations
Refilling an original OEM Epson 252 cartridge is generally not recommended due to hardware and firmware locks:
Internal Bag & Valve Design: OEM cartridges feature a sealed vacuum bladder and one-way valve. Drilling a refill hole breaks the air seal, resulting in ink leakage or inconsistent ink flow.
One-Time Encrypted Chip: OEM chips permanently write an “Empty” status once ink levels drop to zero. Even if manually refilled, the printer will reject the cartridge and stop printing.
3 Cost-Effective Third-Party Solutions
| Solution | Chip Type | Key Advantage | Best For |
|---|---|---|---|
| Compatible / Remanufactured Cartridge | One-Time Replacement Chip |
Plug-and-play convenience at 20%–40% of OEM cost. |
Everyday office printing |
| Refillable Ink Cartridges | Auto-Reset Chip (ARC) |
Transparent body with easy-fill ports; chip resets to 100% upon reinsertion. |
Moderate volume & custom ink testing |
| Continuous Ink Supply System (CISS) | Permanent / Chipless Firmware |
External large-capacity tanks; minimizes per-page printing costs. |
High-volume A3+ production (e.g., WF-7710) |
How to Prevent Third-Party Chip Lockout (Firmware Guide)
Pro Tip: Epson frequently pushes automatic firmware updates designed to block third-party and ARC chips.
Disable Auto-Updates: On your printer screen, go to Settings > General Settings > Firmware Update and set it to Off.
Driver Settings (PC/Mac): Open the Epson printer software utility on your computer and uncheck “Enable Automatic Firmware Updates” to protect chip recognition permanently.
Conversion Guide & Refill SOP for WorkForce WF-7710 / WF-7610
The wide-format Epson WorkForce WF-7710 and WF-7610 are industry favorites for custom garment printing. However, using the correct ink chemistry for your specific transfer method is essential to avoid print failures.
Heat Transfer Paper vs Dye Sublimation: Key Differences
- OEM 252 Pigment Ink (Heat Transfer Paper Only): Original DURABrite pigment ink works well with standard light/dark heat transfer papers on 100% cotton fabrics. It cannot perform true dye sublimation.
- Sublimation Ink Conversion (Polyester & Coated Blanks): For polyester shirts, mugs, and tumblers, the printer must be converted using dedicated disperse dye sublimation inks. Never mix OEM pigment residue with sublimation ink—flush the printhead thoroughly before filling.

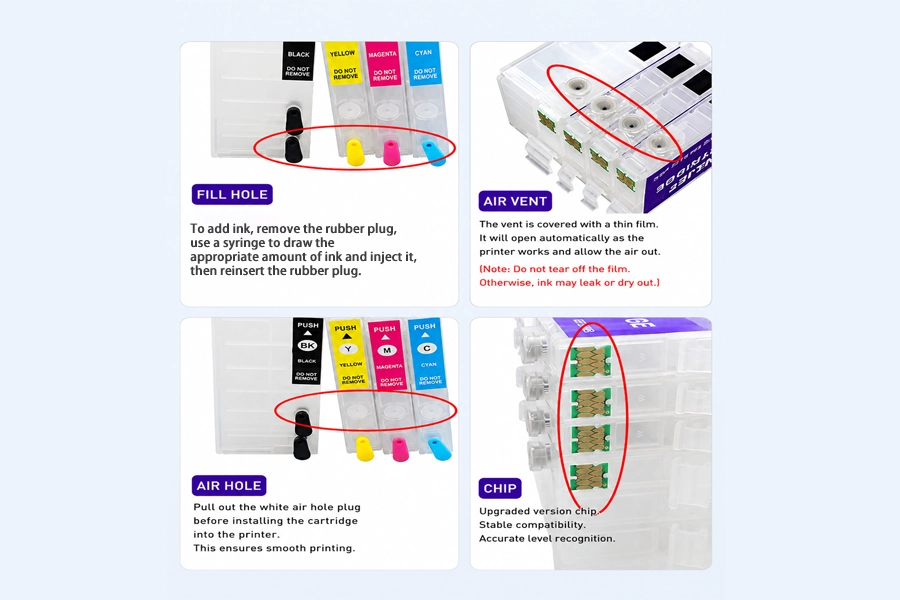

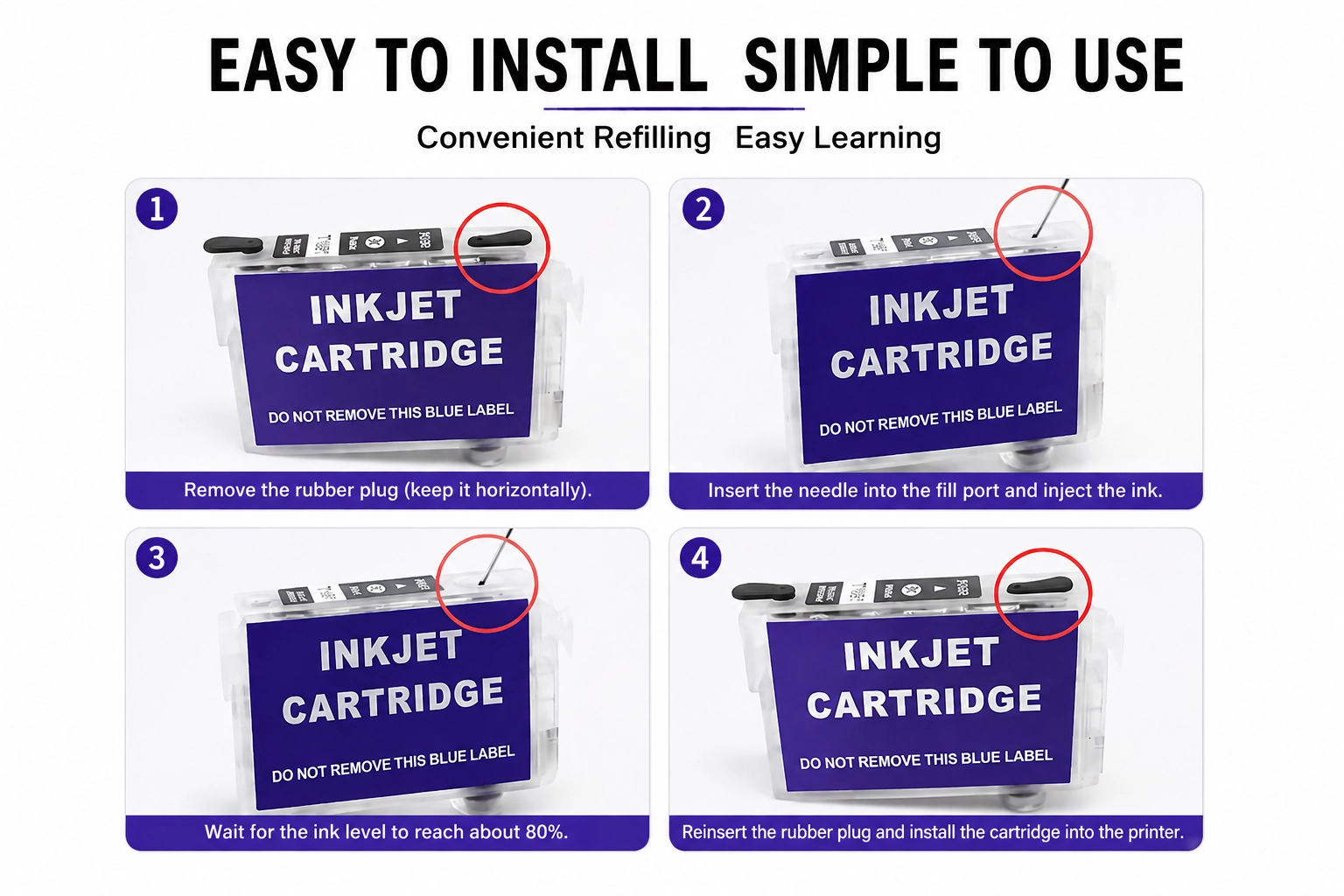

Step-by-Step SOP: Refilling Epson 252 Refillable Cartridges
Follow this 4-step workflow to ensure reliable ink flow and seamless ARC (Auto-Reset Chip) recognition:
- Inject Ink (85% Capacity): Remove the colored refill plug (Ink Hole). Use a clean syringe to inject compatible pigment or sublimation ink until the transparent chamber is approximately 80%–85% full (leave headroom to prevent overflow).
- Seal & Vent: Firmly re-insert the refill plug. Remove the clear/yellow rubber vent plug from the air hole (Air Vent) to balance internal air pressure during printing.
- Install & Reset ARC: Insert the cartridge into the carriage until it clicks firmly. The built-in ARC chip will automatically register as 100% full upon re-insertion.
- Purge Air Bubbles: Run 1 standard printhead cleaning cycle via the printer menu, followed by a nozzle check pattern to clear micro-bubbles before production.
Professional B2B Supply & OEM Solutions for Epson WorkForce Series
- Experience & Technical Expertise:
Backed by nearly 20 years of dedicated R&D in digital printing consumables, Winnerjet formulates ink chemistries precisely matched to Epson Micro Piezo and PrecisionCore printhead architectures. Our specialized formulas deliver superior optical density, ultra-fine particle dispersion, and non-clogging fluid stability for high-speed printing.
Explore our industrial-grade, highly lightfast formulations: Epson-compatible pigment ink solutions.
- Authoritativeness & Global Supply Reliability:
With an annual production capacity reaching hundreds of tons across pigment, dye, dye sublimation, DTF, and DTG systems, we provide dependable one-stop supplies to textile printshops and commercial print houses worldwide. Beyond bulk inks, we supply precision-molded 252 refillable cartridges, ARC auto-reset chips, and complete refill accessory kits.
Looking for wholesale orders, private labeling, or customized chemical formulations? Contact our technical and sales team today for direct factory pricing.
