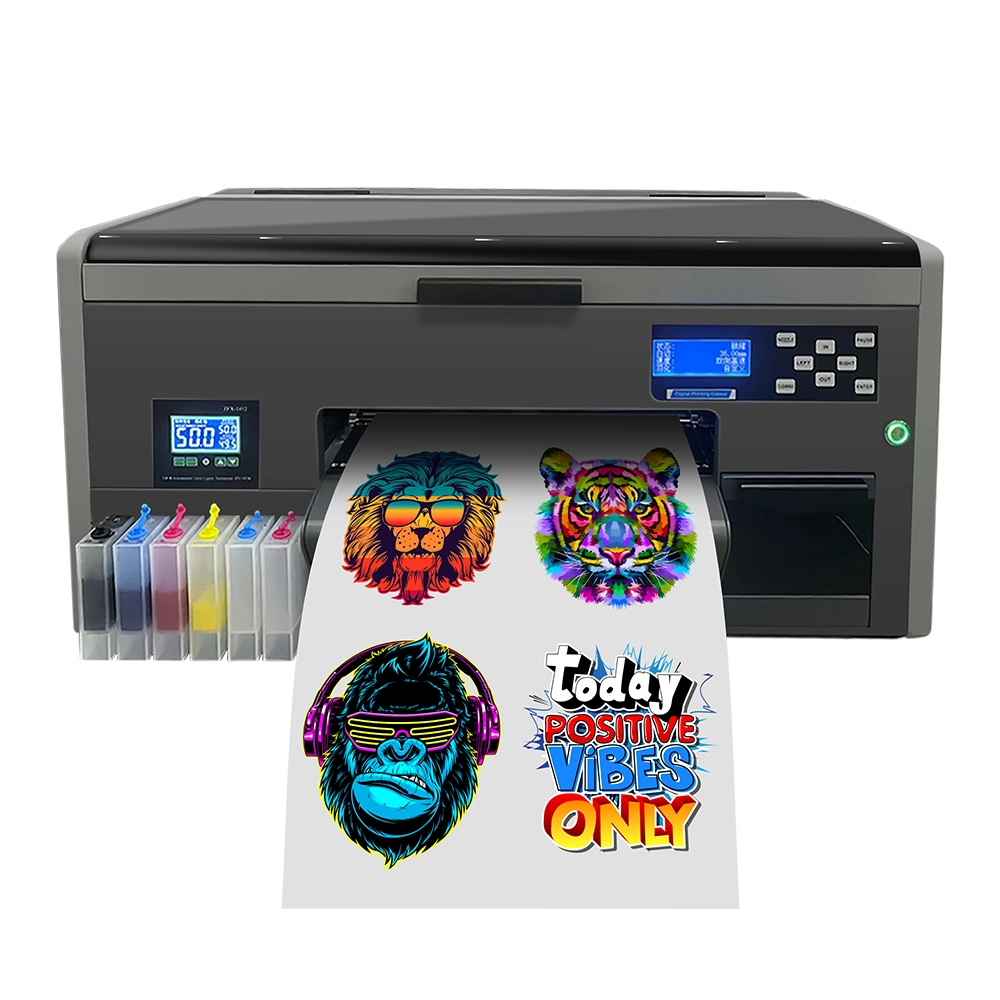

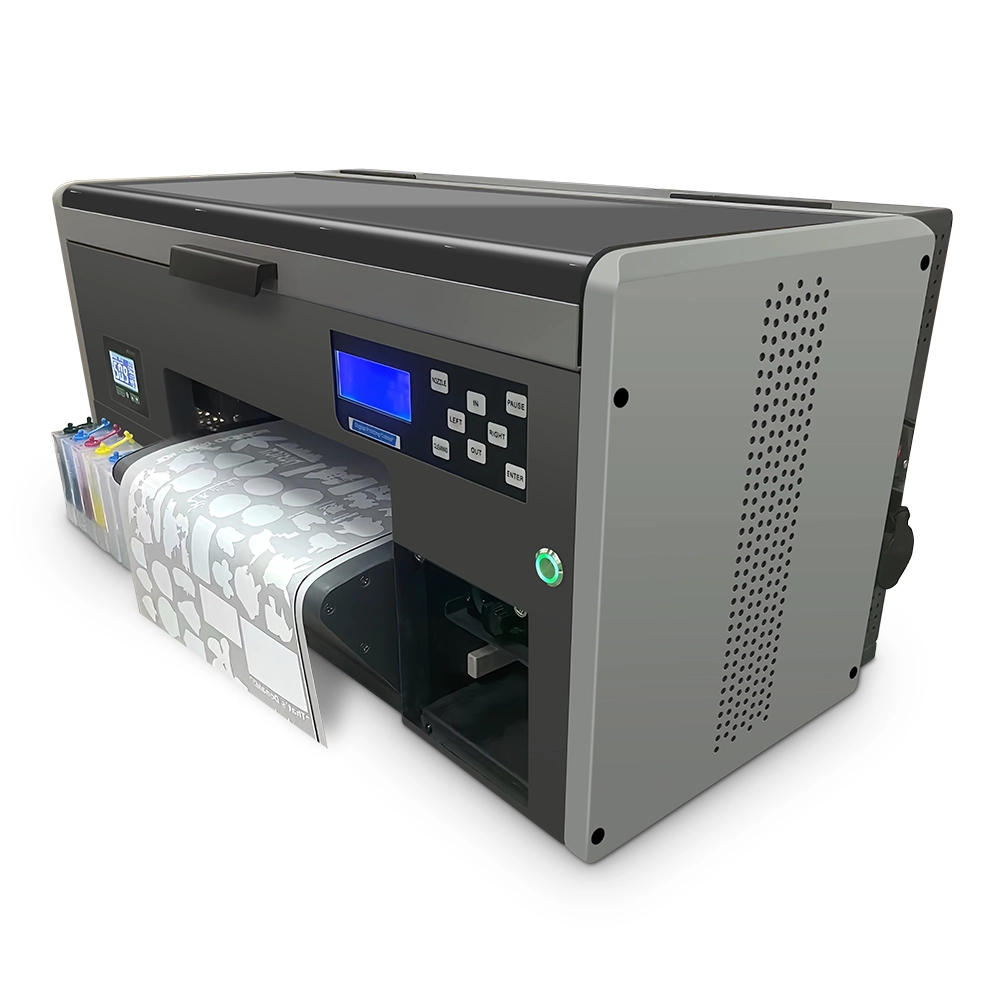

Winnerjet WT301 A3 Desktop DTF Printer (1-head Epson XP600)
Model: WT301
Print head: 1 Epson XP600 print head
Print width: A3+ | 330 mm | 13 inches
Print speed: 8Pass: 1.47 m²/h, 12Pass: 1.2 m²/h
Print accuracy: 8Pass: 360*3600 dpi, 12Pass: 720*2400 dpi
Ink type: DTF Pigment Ink (C/M/Y/K + W)
Heating section: 3-stage heating (Pre, printing bed, rear: 30°C–65°C/86°F-149°F)
Support voltage: 220V/110V 50Hz/60Hz
Rip Software: RIPrint / Maintop / Photoprint
Machine size: 760 × 370 × 360 mm
Power: 350W
Main applications
Compact 330mm Direct-to-Film Printing & Curing System for Custom Apparel, T-Shirt Sampling, and Small-Batch Production.
Our DTF Printer Selling Point
Compact All-in-One Workflow (<1 m²)/ Low 350W Power & Low Maintenance / High-Definition Print Quality
Compact Size
Covers the full "Print – Powder – Cure" process without bulky shaker lines, saving both floor space and initial investment.
Low Power Consumption
Single XP600 printhead setup keeps equipment costs, electricity bills, and replacement expenses to a minimum.
High-Frequency Output
Delivers up to 720×2400 dpi for sharp details, vibrant colors, and solid white ink coverage on all fabric types.
Complete Professional Functions

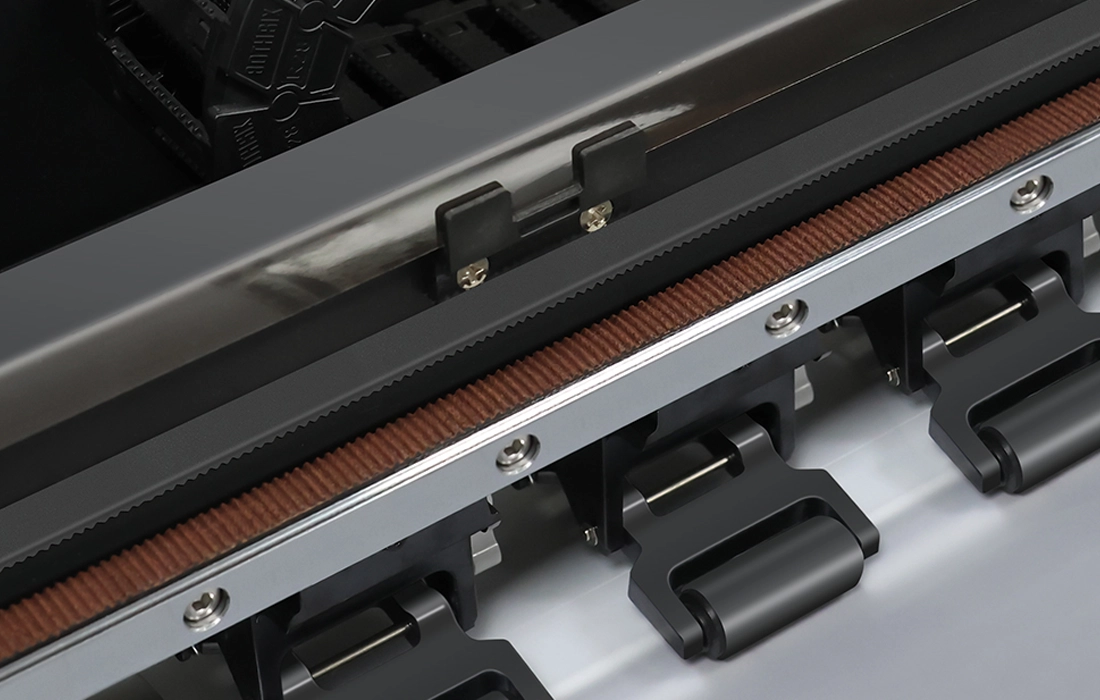

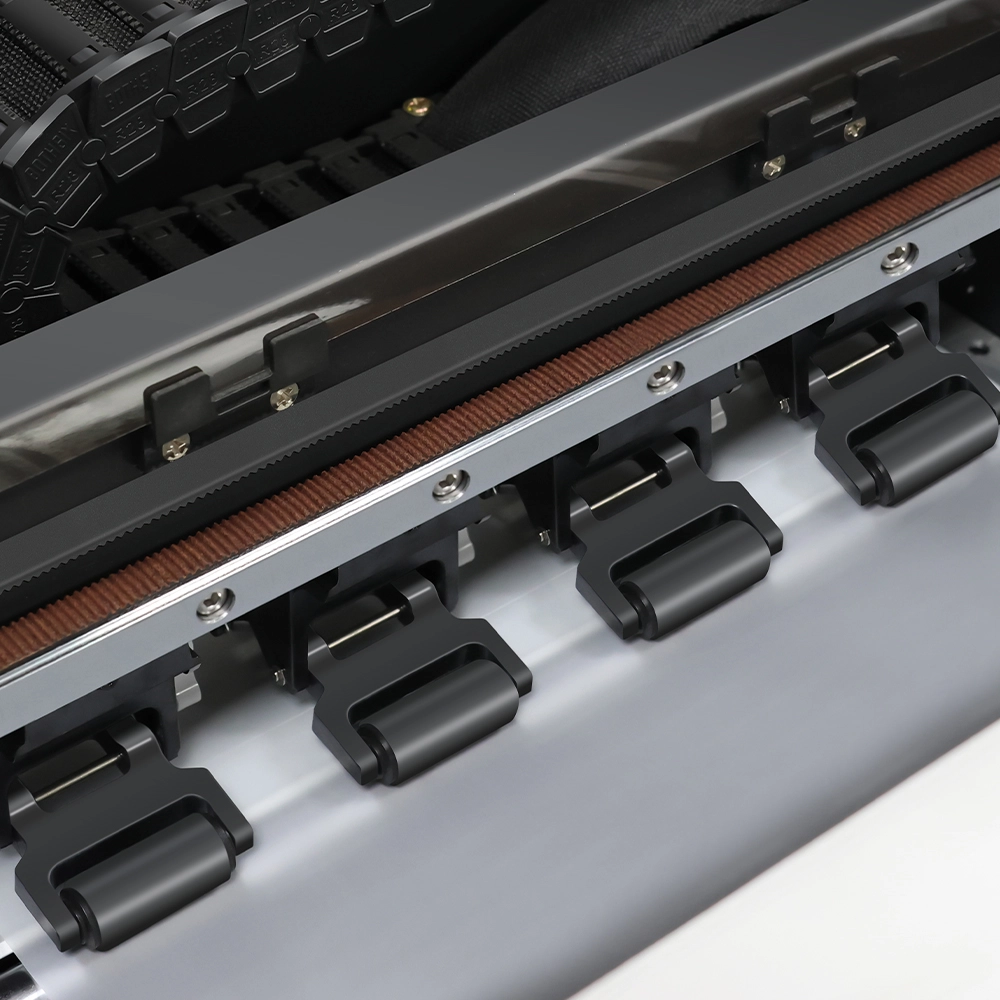

Epson XP600 Industrial-Grade Micro Piezo Printhead
● Equipped with one original Epson XP600 printhead, balancing printing speed with high-resolution image quality.
● Speed performance: 1.47 m²/h for 8-pass printing, and 1.2 m²/h for 12-pass fine printing.

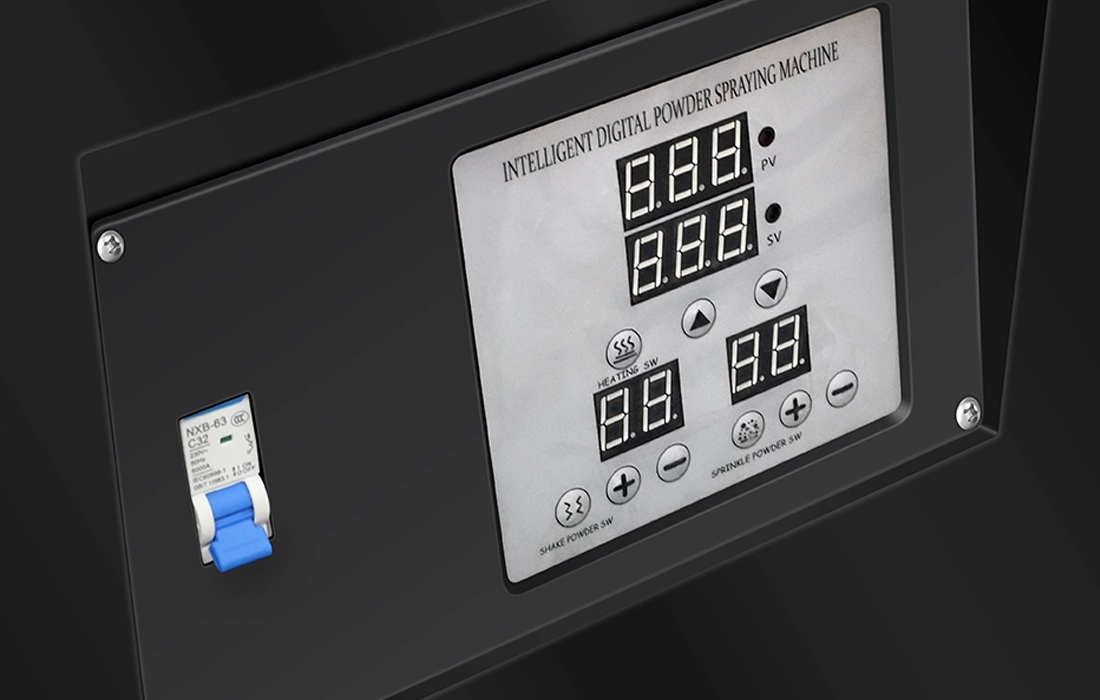

Three-Stage Heating System
● Equipped with a preheater, printing bed heater, and rear heater.
● Adjustable temperature range of 30°C–65°C (86°F–149°F), ensuring rapid drying and setting of ink after application, preventing ink from bleeding and mixing with colored inks, and improving the uniformity of ink powder adsorption.

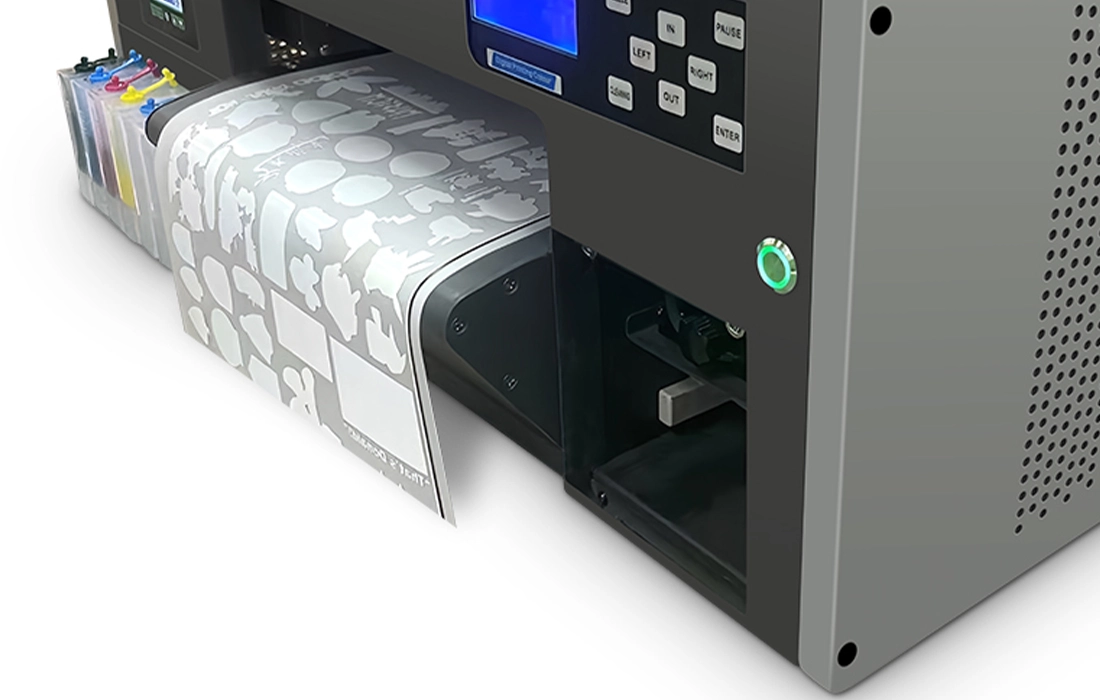

330mm Wide Print Width
Compared to the traditional 300mm width, 330mm (A3+) supports wider layout, effectively reducing edge waste film and improving material utilization.

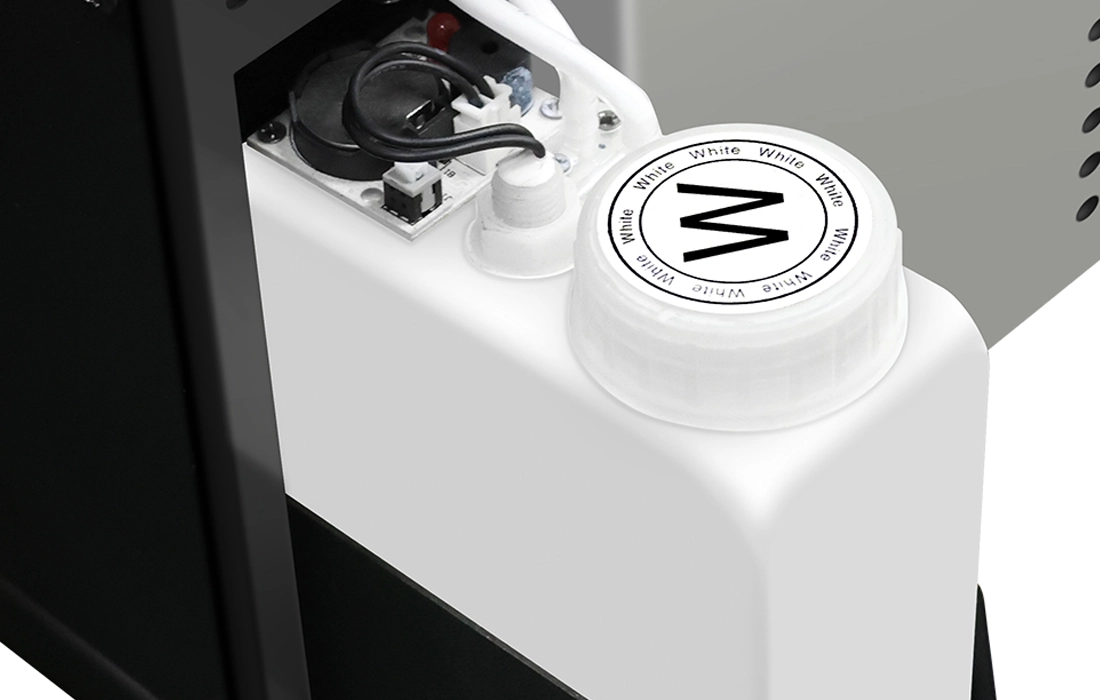

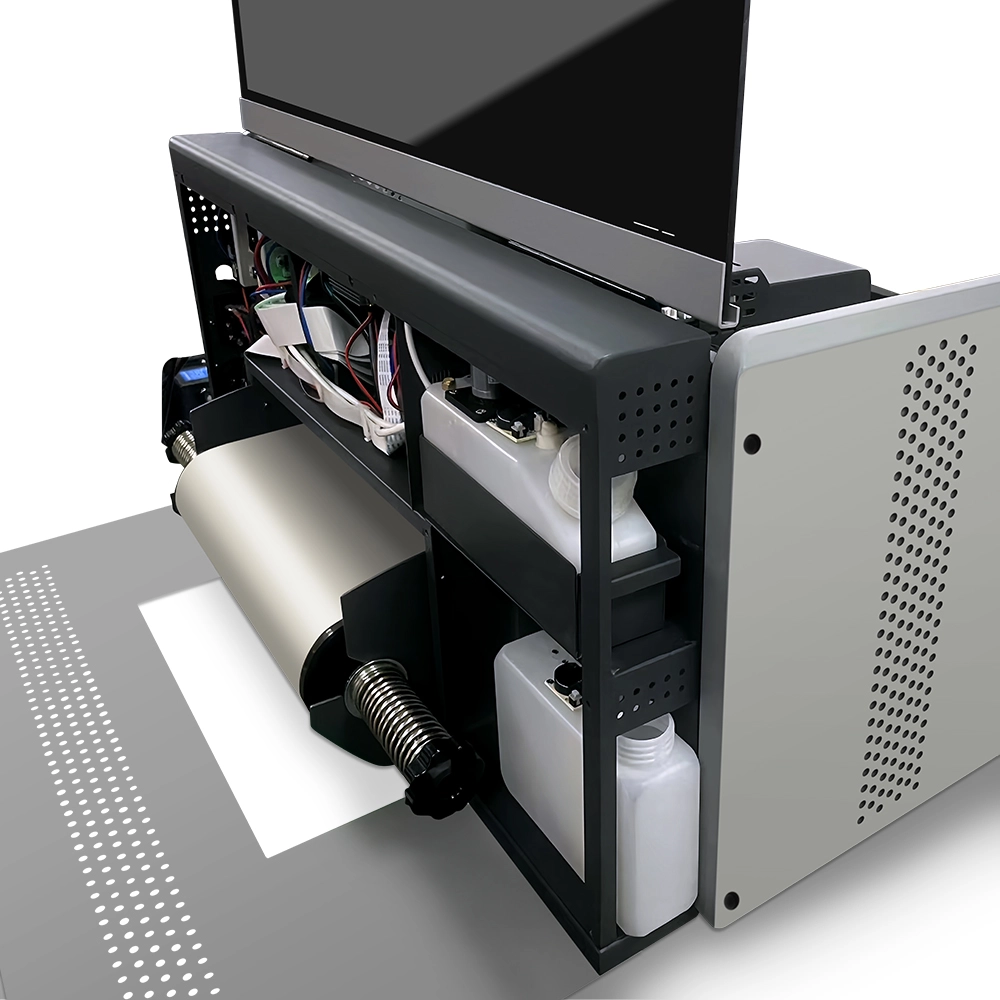

Anti-precipitation white ink stirring and ink supply system
In response to the characteristic of white ink titanium dioxide being prone to precipitation, an automatic circulation and timed stirring system is provided to ensure that precipitation and nozzle clogging do not occur during long-term shutdowns or continuous printing.

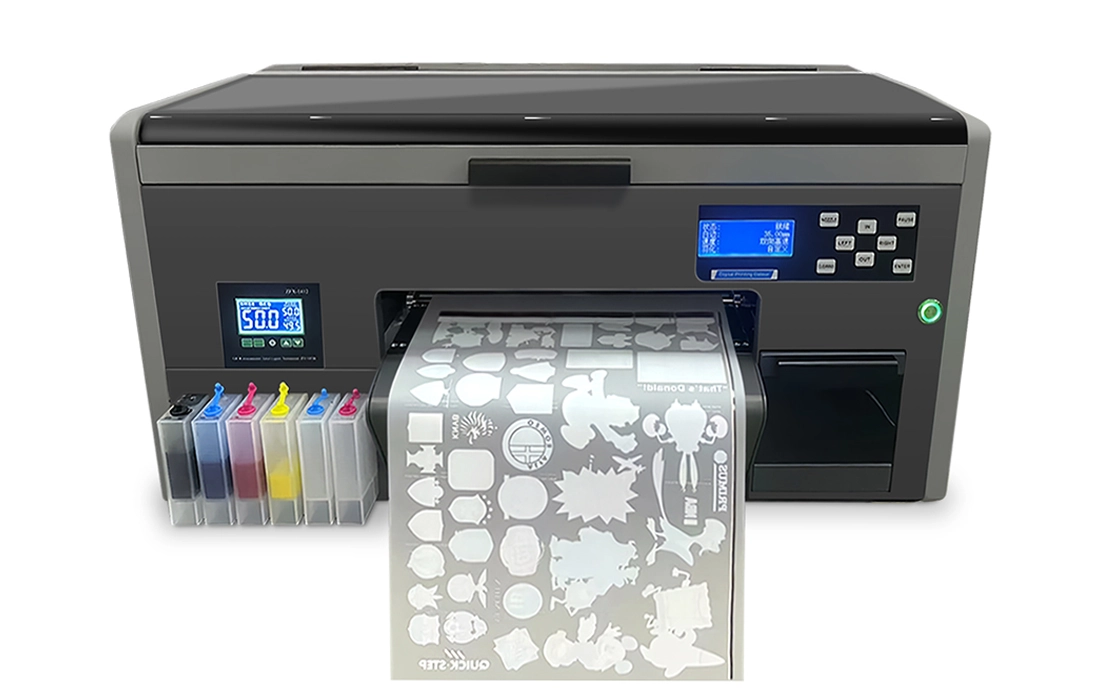

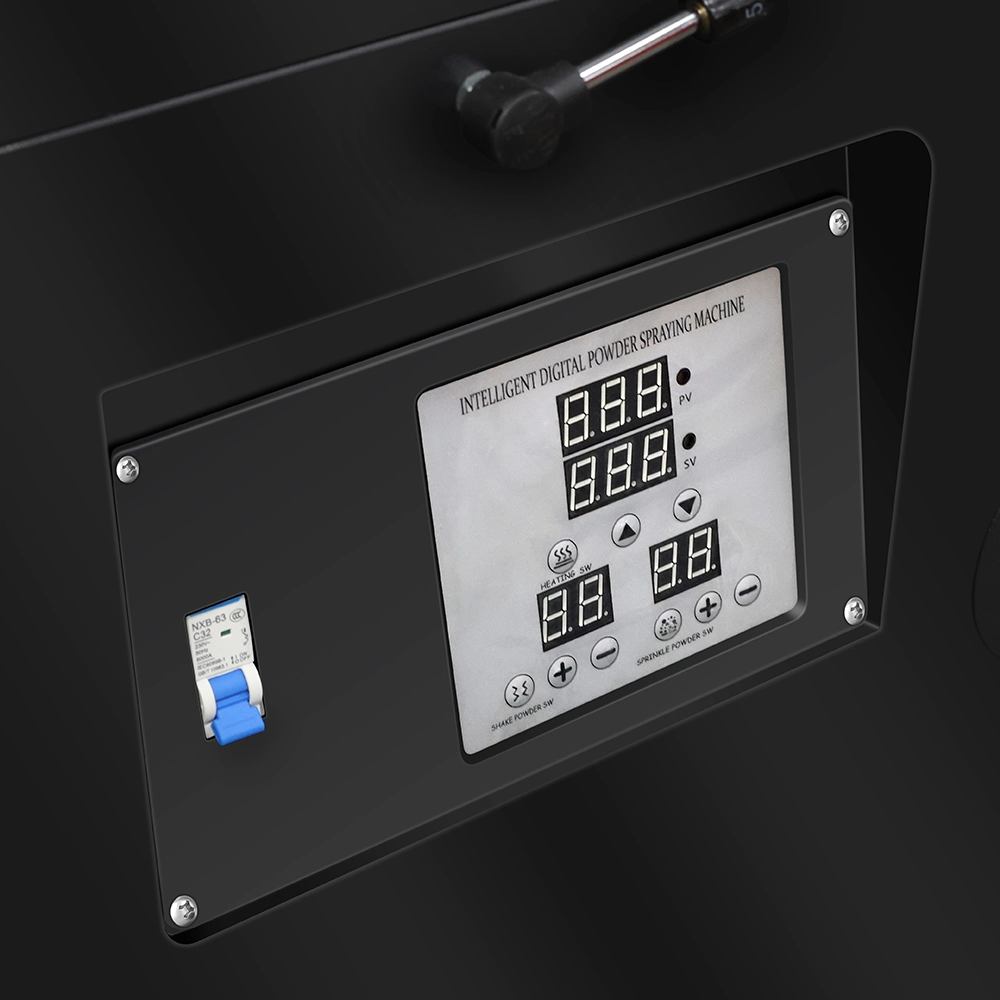

Easy To Operate
The interface is simple, multi-functional, and easy to operate. The operating manual is user-friendly and can be used quickly by both experienced technicians and novices.
Product Specifications
| Parameter | Specification |
|---|---|
| Basic Information | |
| Product Model | WT301 |
| Printhead & Quantity | 1 Pcs Epson XP600 |
| Max Print Width | 330 mm (A3 / A3+) |
| Supported Media | DTF PET Film (Roll / Sheet) |
| Print Performance | |
| Printing Speed | 8pass: 1.47 m²/h 12pass: 1.2 m²/h |
| Printing Accuracy | 8pass: 360*3600 dpi 12pass: 720*2400 dpi |
| System & Working Conditions | |
| RIP Software | RIPrint / Maintop / Photoprint |
| Heating Sections | Pre, printing bed, rear heater (30°C–65°C / 86°F–149°F) |
| Working Environment | Temp: 20–28°C; Relative Humidity: 65%–75% |
| Power & Dimensions | |
| Voltage & Power | 220V / 110V 50Hz/60Hz | 350W |
| Machine Size (L×W×H) | 760 × 370 × 360 mm |
| Packing Size (L×W×H) | 970 × 620 × 630 mm |
| Gross Weight | 61.5 kg |
| Matching Curing Oven | |
| Curing Format & Temp | Fits up to A3+ (330×450 mm) | 0–200°C Adjustable |

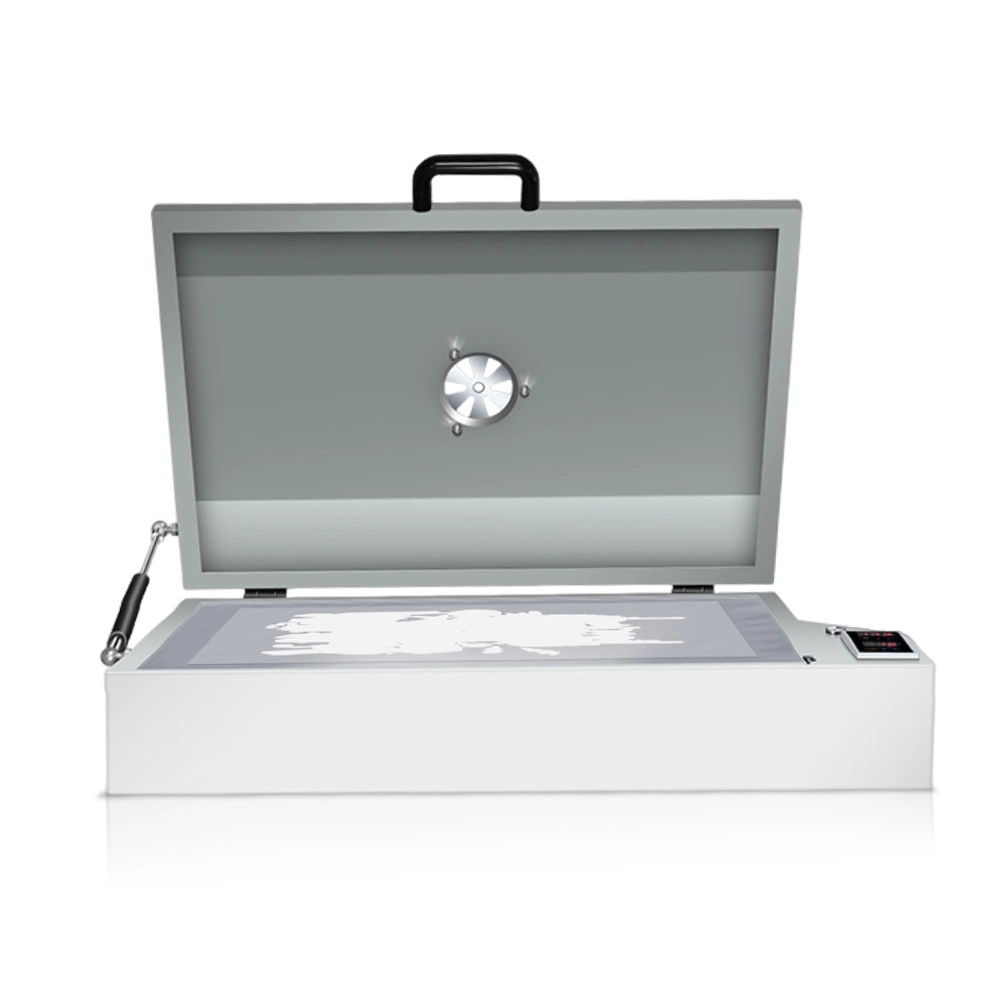

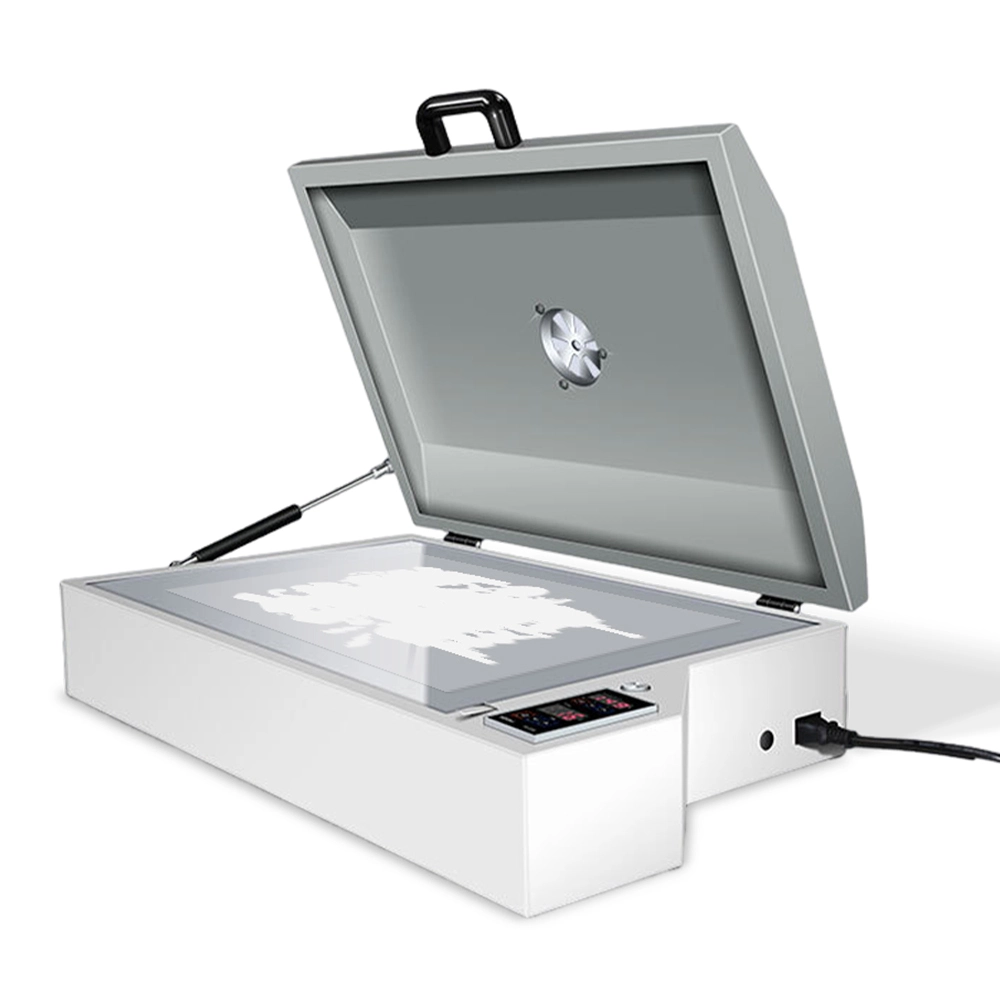

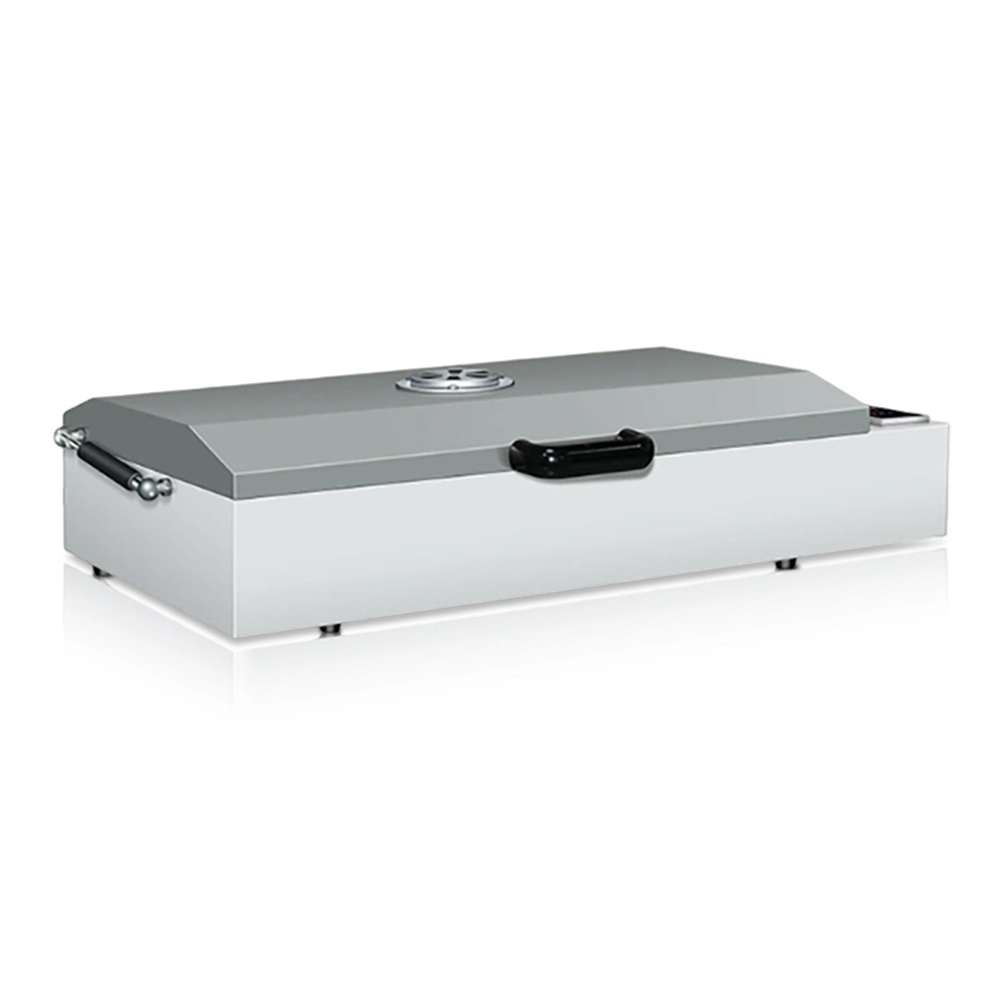

Matching Curing Oven
Drawer-type guide rail structure for safe and heat-resistant film placement and removal; heating element with hot air circulation design ensures uniform melting of the adhesive powder.
Explore Our DTF Printer Workflow

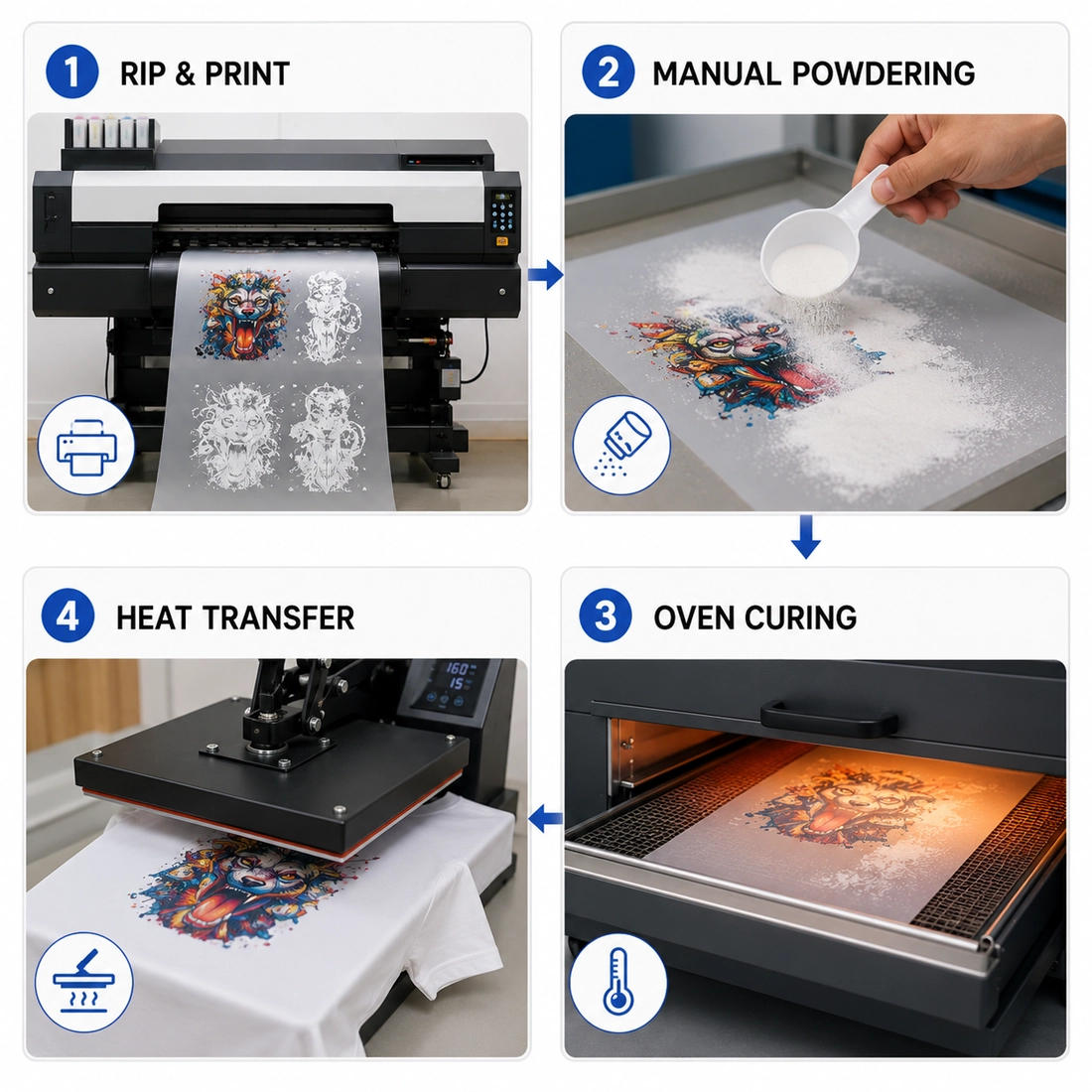

DTF Printing Step-by-Step Guide
RIP & Print – Manual Powdering – Oven Curing –Heat Transfer
DTF Printing Applications
Winnerjet DTF Printer Exclusive Offers
Buy a Winnerjet A3 DTF printer online and get a free premium DTF printing starter kit.
The Starter Consumables Set includes:
- DTF Film: 60CM*100M/30CM*100m 1 Roll
- DTF Powder: 2kg (4.4 lbs) White and Black
- DTF Ink: 1000ml*5 (C,M,Y,K,W)
- Rip Software: Flexi Print/Maintop
- Winnerjet DTF Environment Settings
- Winnerjet DTF Instructional Video
FAQS
What is the advantage of the 330mm width on the WT301?
The 330mm width fits standard A3+ designs with zero margin waste. It offers extra layout room, making multi-design gang sheet printing faster and more cost-effective.
What does the 3-stage heating system do?
It controls film temperature across pre, print, and rear zones (30°C–65°C / 86°F–149°F). This sets ink droplets instantly, prevents color bleeding, and improves powder adhesion.
Why choose the desktop oven over a powder shaker?
It cuts down equipment size and initial cost significantly. The compact setup uses less powder and fits tight workspaces, making it ideal for small batches and sampling.
What are the ideal operating conditions for the WT301?
Keep the room temperature at 20°C–28°C (68°F–82°F) and relative humidity at 65%–75% for smooth ink flow and reliable print performance.
How to solve the problem of film wrinkling or paper jam when printing DTF?
Make sure to use high-quality DTF film, load the film material correctly, and keep the temperature and humidity of the printing environment stable.
