Winnerjet WT1860 i3200 Dual-Head Sublimation Printer
Ink Type: Sublimation Ink
Print head: I3200 heads*2
Print Width: Max 1860mm
Dimensions(L*W*H)：3180*840*750mm
Max Speed: Up to 28 m²/h
Usage: Paper Printer, Clothes Printer
Applicable Industries: Hotels, Garment Shops, Home Use
1860mm Wide-Format Sublimation Printing for High-Volume Textile & Transfer Applications
Sublimation Printer Key Specifications
Winnerjet WT1860 is an 1860mm sublimation printer with two Epson i3200 printheads, CMYK ink configuration and a maximum print speed of 28 m²/h.
1860mm
Wide Printing Width Large-format sublimation printing
2 × i3200
Epson i3200 Printheads Dual-head configuration
28 m²/h
Maximum Print Speed Production mode
CMYK
4-Color Sublimation Printing Standard CMYK configuration
Winnerjet WT1860 Sublimation Printer Features

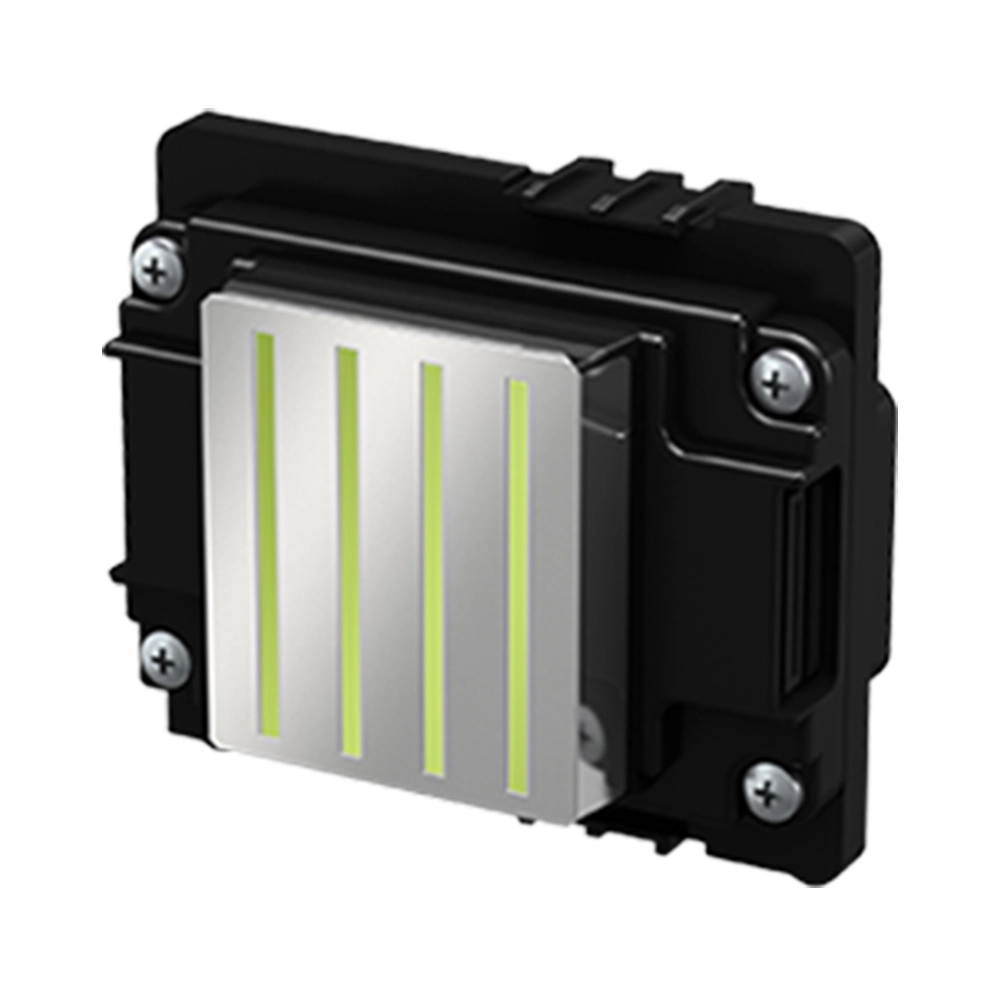

Dual Epson i3200 Printheads
The WT1860 uses two Epson i3200 printheads to support high-resolution CMYK sublimation printing. The dual-head configuration is designed for commercial and production environments that require consistent output over extended print runs.
1860mm Wide Printing Width
With a maximum printing width of 1860mm, the WT1860 is designed for wide-format sublimation transfer applications, including textile printing, apparel production, signage and customized transfer products.
Up to 28 m²/h Printing Speed
Maximum speed: up to 28 m²/h, depending on resolution and print mode.
720 × 540 — 28 m²/h
720 × 720 — 20 m²/h
720 × 1800 — 16 m²/h
Product Specifications
| Model | WT1860 | Printhead | i3200 |
|---|---|---|---|
| Number Of Nozzles | 2 | Ink Compatibility | Thermal transfer (Sublimation ink) |
| Resolution | 540dpi / 720dpi / 1440dpi | Maximum Printing Width | 1860mm |
| Ink Out Method | CMYK | Three Heating Sections | Pre-heater, printing bed heater, rear heater (30°C-65°C) |

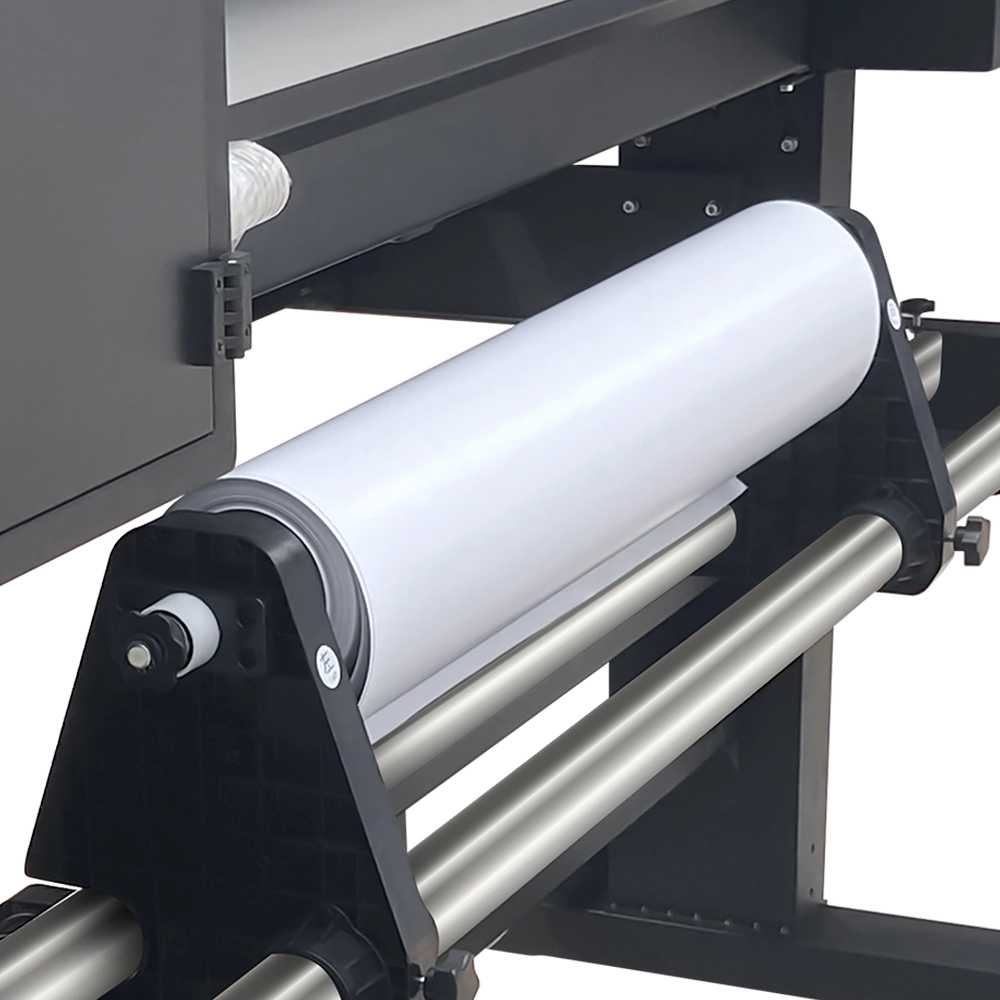

| Screen Drying Configuration | Intelligent infrared heating / air-drying system | Auto Feeding/Collecting System | Standard configuration |
| Material Type | Gum, photo paper, light film, PVC / car stickers, light cloth, soft film, transfer paper | Printing Software | Photoprint |
| Language | Chinese / English | Environmental Conditions | Temperature: 15-35°C Relative Humidity: 40%-65% |
| Dimensions (L*W*H) | 2790 × 1400 × 1500 mm | Weight | 180kg |
| Outer Packing Size (L*W*H) | 2850 × 900 × 850 mm | Gross Weight | 225kg |
| Print Speed |
EPSON-F3200: 3pass - 720x540 : 28m²/h 4pass - 720x720 : 20m²/h 6pass - 720x1800 : 16m²/h |
||

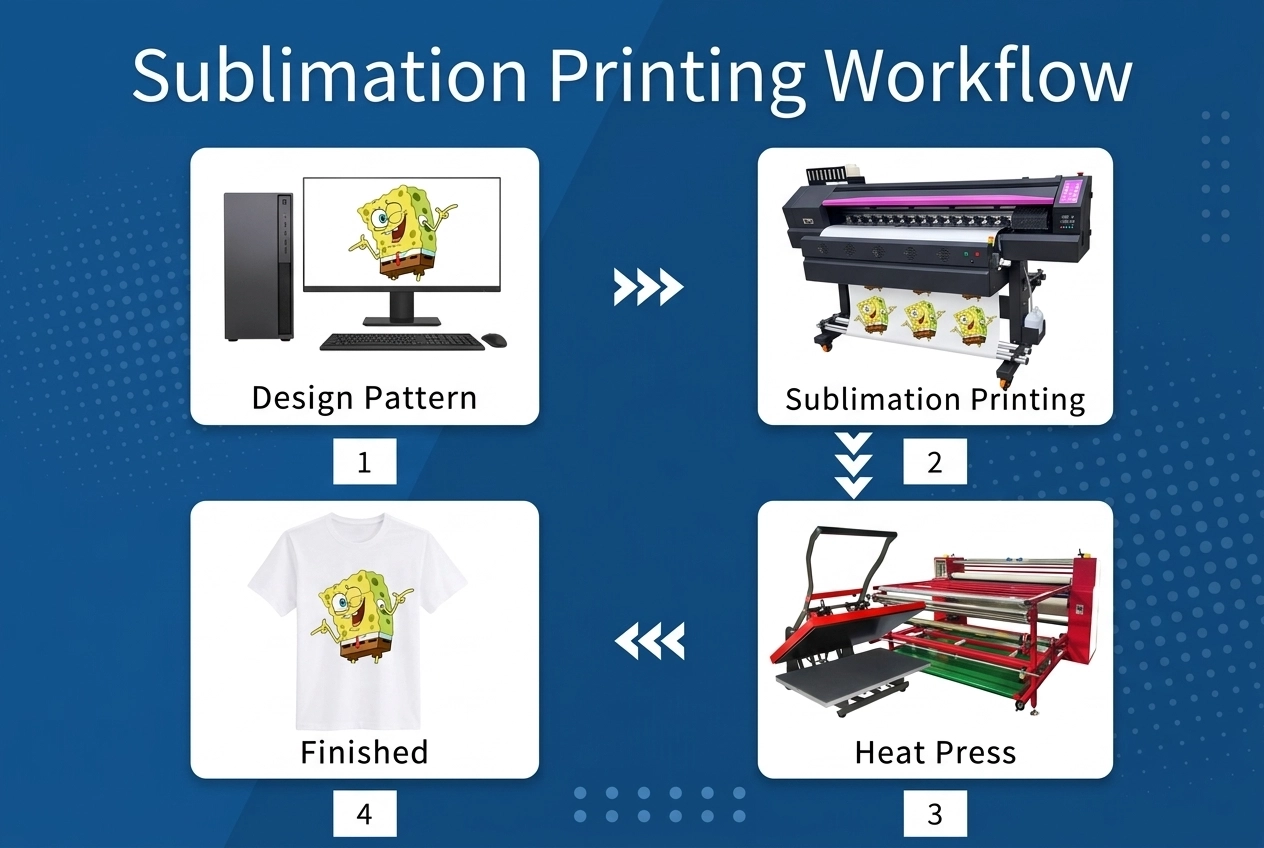

Explore Our Sublimation Printer Workflow
Prepare the artwork in the RIP/printing software.
The WT1860 prints CMYK sublimation ink onto compatible transfer paper.
Transfer the printed design onto suitable polyester fabric or sublimation-compatible material using a heat press or calender.
The transferred image becomes part of the fabric surface with vibrant color and detailed graphics.
Sublimation Printing Step-by-Step Guide
Winnerjet Sublimation Printer Exclusive Offers
Contact us to purchase a Winnerjet Sublimation Printer and get a free premium Sublimation printing starter kit.

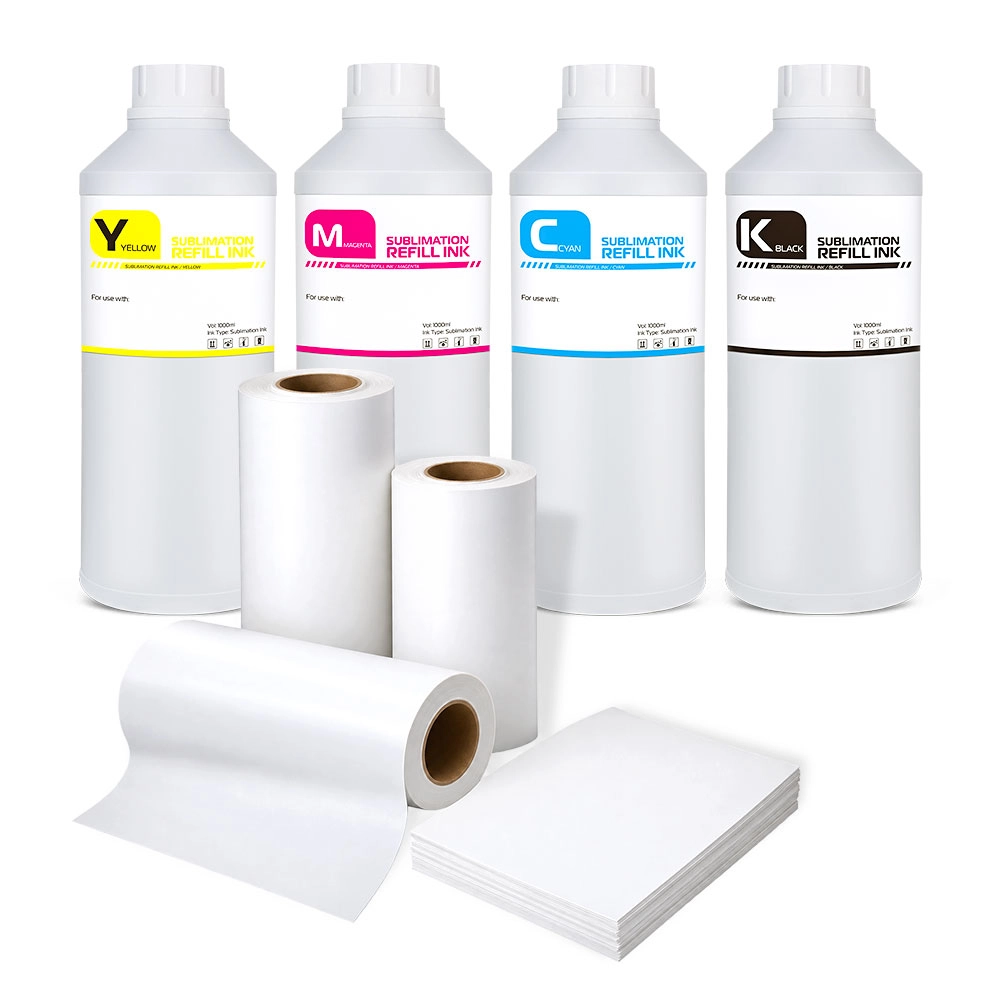

The Starter Consumables Set includes:
- Sublimation Transfer Paper: 1 Roll
- Sublimation Ink: 1000ml*4 (C, M, Y, K)
- Winnerjet Sublimation Environment Settings
- Winnerjet Sublimation Instructional Video
FAQ ABout Winnerjet Sublimation Printer
What materials can the WT1860 sublimation printer print on?
The printer prints high-density sublimation ink onto transfer paper, which is then heat-transferred onto polyester fabrics (minimum 60–70% polyester content), polyester-blend textiles, sportswear, flags, banners, light films, and hard-surface blanks with a polymer coating (such as mugs and aluminum panels).
What is the actual production speed and resolution of the dual i3200 setup?
Equipped with 2 Epson i3200 printheads, the WT1860 delivers up to 28 m²/h at 3-pass (720×540 dpi) for rapid volume production, 20 m²/h at 4-pass (720×720 dpi) for standard jobs, and 16 m²/h at 6-pass (720×1800 dpi) for high-definition detail.
What heating and drying system is integrated into the machine?
It features a three-section heating system (pre-heater, printing bed heater, and rear heater adjustable from 30°C to 65°C) combined with an intelligent external infrared heating and air-drying system, ensuring paper stays flat and ink dries quickly before automated winding.
What printing software and file formats are supported?
The system comes configured with professional Photoprint RIP software, supporting standard graphic file formats including TIFF, JPG, PDF, EPS, and AI.
What consumables starter kit is included when contacting us to purchase?
Each unit order includes a free starter package: 1 roll of premium sublimation transfer paper, a 4-color CMYK sublimation ink set (1000ml × 4), factory environment/ICC profile presets, and step-by-step instructional training videos.
How is the printer packed and protected for international shipping?
The machine is shipped in a reinforced export wooden crate (outer packing dimensions: 2850 × 900 × 850 mm; gross weight: 225 kg) with secure transit locks to ensure the printhead carriage and guide rails remain intact during ocean or air freight.
