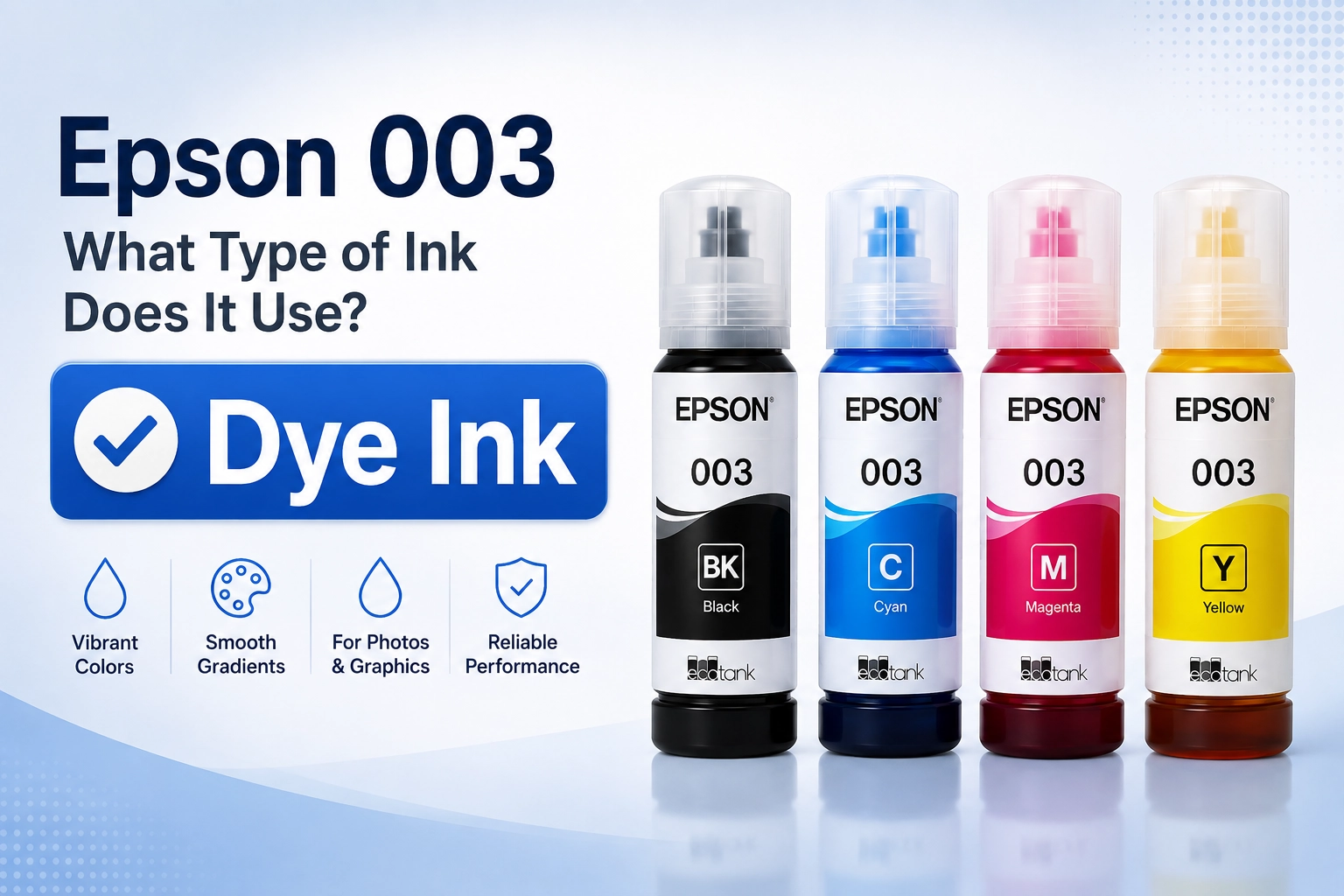

Epson 003 ink (T00V1–T00V4) is 100% water-based dye ink across all four colors (Black, Cyan, Magenta, and Yellow), not pigment ink.
Engineered primarily for everyday home and SOHO EcoTank printers (such as the L3110, L3150, L3210, and L3250 series), the 003 formulation utilizes fully dissolved dye molecules to deliver high-gloss photo vibrance, ultra-low viscosity, and clog-free fluid dynamics across Micro Piezo printheads. Because it is a dye-based system, it is naturally water-soluble and not waterproof or UV-resistant.
Backed by Winnerjet’s nearly 20 years of digital printing ink manufacturing and global R&D experience, laboratory viscosity analysis, particle-free filtration benchmarks, and OEM miscibility testing confirm that Epson 003 must not be mixed directly with pigment ink formulations to prevent immediate flocculation and nozzle failure.
Epson 003 Technical Specifications & Compatible Printer Models
Epson 003 is a 100% water-based dye ink designed for everyday printing across popular Epson EcoTank/L-series printers. It delivers vibrant photo colors, smooth ink flow, and zero nozzle clogging. Thanks to its standardized formulation, 003 ink offers universal compatibility across a broad lineup of single-function and multifunction printers. Below are the verified technical parameters tested by the Winnerjet engineering team for 003 dye ink.
Technical Specifications (Winnerjet Benchmarks)
| Parameter | Specification | Key Benefit |
|---|---|---|
| Ink Type | Water-based Dye Ink (CMYK) | 100% liquid solution, zero solid particles |
| Volume | 65 ml / bottle | Standard replacement size (bulk available) |
| Viscosity | 2.0 – 3.2 mPa·s | Smooth jetting, no satellite drops |
| Surface Tension | 28 – 36 mN/m | Stable ink flow during continuous printing |
| pH Level | 7.5 – 9.0 | Safe for printheads and ink tubes |
| Filtration | < 0.2 μm | Multi-stage filtered to prevent clogging |
| Shelf Life | 24 Months | Long-lasting formula stability |
Compatible Printer Models
Epson 003 ink is fully compatible with the following Epson EcoTank / L-Series models:
- Single-Function: L1110, L1210, L1216, L1250, L1256
- All-in-One (3-in-1): L3100, L3110, L3116, L3150, L3156, L3210, L3216, L3250, L3256
- Business ADF / Fax: L5190, L5290
Why Is Epson 003 a Dye-based Ink?
- Vibrant Photo Quality: Penetrates glossy photo paper completely for bright, rich colors without dull reflections.
- Clog-Free Reliability: Particle-free formula minimizes printhead wear and eliminates frequent cleaning cycles.
What Happens If You Mix Pigment Ink with Epson 003?
While community threads on specialized forums like PrinterKnowledge and Super User frequently warn users “never mix dye and pigment inks,” they rarely explain the underlying chemistry. Mixing pigment ink into an Epson 003 EcoTank system causes severe, irreversible printhead failure due to fundamental chemical incompatibility.
The Chemical Reaction: Emulsion Breakdown & Flocculation
- True Solution vs. Colloid Suspension: Epson 003 dye ink is a true molecular solution (colorant dissolved completely in water), whereas pigment ink is a colloidal dispersion of microscopic solid particles held apart by polymer dispersants.
- Destabilizing the Zeta Potential: When the polar solvents and surfactants of dye ink collide with pigment dispersants, the electrostatic charge (Zeta potential) keeping pigment particles separated collapses.
- Instant Flocculation: The solid pigment particles break out of emulsion and clump together, forming a sticky, gelatinous sludge within seconds.
Impact on Micro Piezo Printheads
- Nozzle Clogging (15–20 $\mu\text{m}$): The gel-like agglomerates immediately trap themselves in the printhead’s micro-apertures (15–20 microns) and internal damper mesh filters.
- Irreversible Failure: Standard automated “Head Cleaning” cycles cannot dissolve or dislodge this coagulated resin. Continued forced cleanings will only overheat and delaminate the Micro Piezo ceramic actuators, leading to permanent missing nozzles and severe banding.
Manufacturer’s Pro Tip: If your application requires waterproof and fade-resistant prints, do not mix inks inside standard tanks. Instead, perform a complete line flush and deploy dedicated Winnerjet Pigment Ink directly into a cleaned system.
Can You Convert an Epson 003 Printer to 100% Pigment Ink?
Many small studios and business users ask whether they can convert entry-level EcoTank models (such as the L3110, L3150, L3210, and L3250) from standard 003 dye ink to full pigment ink. The short answer is yes, conversion is physically possible, but only if you follow a strict cleaning protocol.
Why do Epson Micro Piezo printheads support modification?
Epson’s Micro Piezo cold printing technology physically supports pigment inks.
Key Applications
- Waterproof Documents: Smudge-proof contracts, receipts, and forms.
- Outdoor & Fade-Resistant Media: Sticker labels, decals, and photo prints.
- Specialty Transfer: Dark/light heat transfer paper for apparel.
Check out our guide to see which Epson inks are pigment-based.
4-Step Conversion SOP
To avoid instant clogging, completely clean out residual dye before adding pigment ink:
- Purge Residual Dye Ink: Use a syringe to drain the ink tanks, tubing, and printhead dampers.
- Chemical Flush: Flush lines with a water-based cleaning solution until the fluid runs clear.
- Inject Pigment Ink: Refill with high-grade Winnerjet Pigment Ink.
- Power Flush & Test: Run a Power Ink Flush in your driver and print a Nozzle Check pattern to verify line consistency.
Global Ink Code Decoding: 003 vs 001 vs 103 vs 004 vs 522
Epson assigns regional model codes and unique bottle nozzles for the same EcoTank hardware platforms. As an ink manufacturer, Winnerjet has mapped the chemical formulations and physical keyways across global markets to ensure safe cross-region refilling:
Global EcoTank Ink Formulation & Compatibility Matrix
| Ink Code | Black Chemistry | Color (CMY) Chemistry | Target Region | Physical Keyway vs. 003 | Compatibility & Refill Risk |
|---|---|---|---|---|---|
| 003 | Dye | Dye | Southeast Asia, South Asia, Latin America | Standard 003 Keyway | Baseline Standard |
| 004 / 002 | Dye | Dye | Mainland China | Slight Variation | 100% Formula Compatible (Requires keyway-matched bottle) |
| 103 | Dye | Dye | Europe, Middle East | Different Keyway | 100% Formula Compatible (OEM bottle cannot insert directly) |
| 001 / 502 | Pigment | Dye | Global Business Series | Different Keyway | DO NOT MIX BLACK (Pigment causes instant clogging in 003 tanks) |
Notice: Regional inks (103/004) share the 003 formula, but incompatible bottle nozzles block direct refilling into 003 tanks.
Winnerjet manufactures replacement ink bottles with precision 1:1 auto-stop keyed nozzles molded specifically for the 003 standard. They dock smoothly, flow automatically, and stop without leaking—delivering factory-grade safety across all L-series EcoTank models.
Manufacturer Selection & Bulk Supply (The Winnerjet Standard)
Not all third-party inks protect your printhead. To ensure zero clogging and accurate color, reliable 003 inks must meet strict factory standards:
How to choose reliable 003-compatible ink:
- $< 0.2\ \mu\text{m}$ Ultra-Filtration: Removes micro-impurities to prevent nozzle clogs.
- $\ge 95\%$ Color Accuracy: High-lightfastness dyes matching OEM color curves.
- 100% OEM Miscibility: Safe to top up with residual OEM dye ink without precipitation.
One-stop consumables solution support
With nearly 20 years of manufacturing experience, Winnerjet supplies direct factory solutions:
- 003 Refill Inks: 65ml auto-stop bottles, 1L bottles, and 20L bulk drums. Explore our Winnerjet Dye Ink and Winnerjet Pigment Ink.
- Full Product Range: Turnkey supply of DTF ink, film, TPU powder, DTG ink, UV ink, and sublimation ink.
- OEM/ODM Customization: Private labeling and custom packaging for global distributors.
Visit Contact Us to request free samples, pricing, and Technical Data Sheets.
FAQ – Epson 003 Uses Dye Ink
Is Epson 003 black ink waterproof?
No. Epson 003 black is a water-based dye ink and is not waterproof.
